768V±384V 500A High Voltage BMS Power Solution Battery Management System for UPS Lithium Battery

Center Tap BMS High Voltage BMS 768V±384V 500A Battery Power Solution Battery Management System for UPS Lithium Battery

Product Profile:

Introducing our state-of-the-art Battery Management System (BMS), designed for meticulous battery performance oversight and seamless integration into energy storage networks.

Advanced BMS Capabilities: Our BMS offers an integrated solution for relentless battery monitoring, coupled with an HMI display for transparent system status and self-diagnostics.

Enhanced Safety and Durability: Equipped with a robust safety framework and strategic battery protection measures, our BMS is engineered to secure battery integrity and prolong service life.

Scalable and Modular Design: Our system supports the aggregation of multiple energy storage units, expanding to accommodate extensive series configurations of up to 256 cells, specifically tailored for lead-carbon batteries.

Versatile Communication Interfaces: Featuring a range of RS485, CAN, Ethernet, and dry contact I/O interfaces, our BMS ensures compatibility with diverse PCS and monitoring systems.

Customizable Communication Protocols: Our BMS is delivered with our communication protocol, yet it is readily adaptable to various manufacturers' PCS to suit customer-specific requirements.

Extended Data Storage: The system is fitted with a high-capacity memory chip for essential operational data storage, with the option to integrate an SD card for detailed historical cell data logging.

Automated Control Systems: Simplifying the parallel connection process of battery packs through automatic circulation control and parallel/offline management functionalities.

Product Specifications:

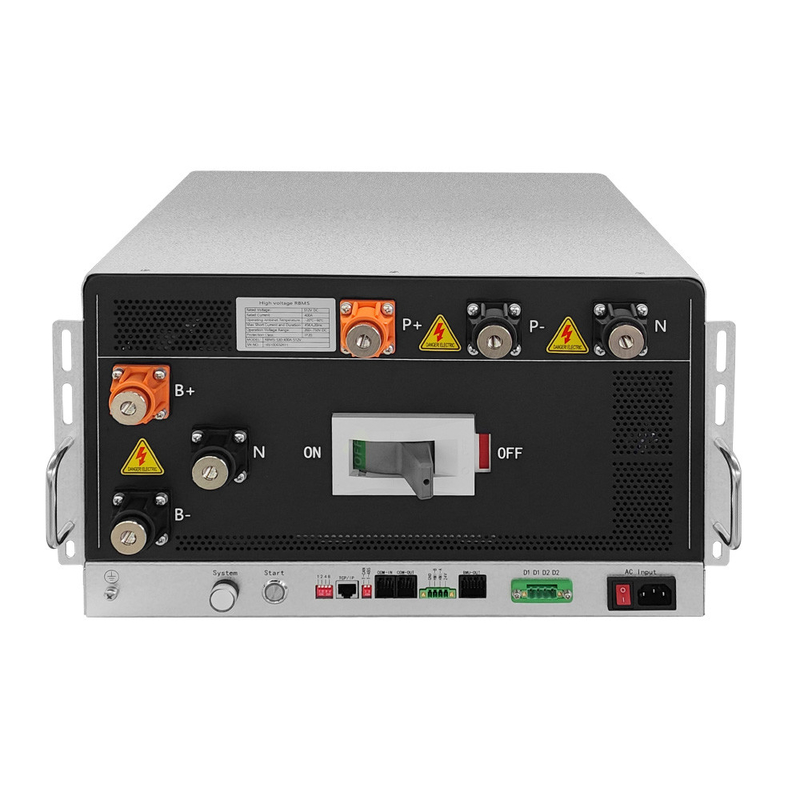

• Product Name: 6U RBMS
• Key Parameters:
  • Continuous Maximum Current: 500A
  • Voltage Options: 350V, 750V, and 1000V, selectable based on voltage rating
  • Power Consumption: Up to 25W
  • Current Sampling Precision: 1%FSR
  • Insulation Voltage Threshold: Withstands 2800VDC at less than 1mA for 1 minute
  • Protection Class: IP20
  • Dimensions: 485mm x 260mm x 550mm
  • Net Weight: Approximately 40Kg
• Communication Ports:
  • BMU Interface: CAN
  • UPS Connectivity: RS485/CAN
  • SBMS Integration: RS485/CAN
  • Monitoring Software: Ethernet
• Core Functionalities:
  • Battery Management: Charges and Discharge Management Supported
  • Temperature Regulation: Integrated battery temperature management
  • System Upgrades: IAP upgrade feature
  • Protection Settings: Configurable protection parameters
  • Circuit Protection: Short-circuit protection (50KA 20ms)
  • Charging Features: Pre-charge capability included
  • Parallel Management: Parallel circulation control enabled
  • Event Logging: Supports 5,000 entries
  • Power Supply Options: Dual supply capability (battery and mains with priority to mains)
• Optional Features:
  • Insulation Detection: Designed for systems exceeding 300V
  • HMI Display: 3.5 inches standard, with a 7-inch external option
  • Operation Mode: Pre-configured for standalone or parallel operation
  • Dry Contact Outputs: Up to 2 optional outputs

Accessories:

• Power Terminal Covers: Black and Orange (2 each)
• External Communication Cable: Shielded 6-core, 2 meters in length
• AC Socket: 250V, 10A with switchable wiring
• Dry Contact Terminals: 5.08-4Pin
• Terminal Matching Resistance: 120R
• Display Screen Terminals: 3.81-4Pin
• Circuit Breaker Auxiliary Handle: 1

About GCE: Hunan GCE Technology Co., Ltd. is dedicated to the innovation of BMS and lithium battery peripherals. Our intelligent BMS solutions are propelled by cutting-edge technology, optimizing battery management efficiency and lifespan. With a competitive edge in BMS strategies, we ensure stable and user-friendly operations. Our BMS is versatile, suitable for a range of applications from low-voltage to high-capacity single lithium batteries, and is designed to reduce operational costs and meet market demands for excellence.
