Product Details
Place of Origin: China,Hunan
Brand Name: GCE
Certification: CE/RoHS/SGS/MSDS
Model Number: RBMS-S23-125A-600
Payment & Shipping Terms
Minimum Order Quantity: 2set
Price: negotiable email with cara@hngce.com
Packaging Details: Corrugated Carton, bundles, pallets, wooden box
Delivery Time: 15-25 workdays
Payment Terms: FOB/CFR/EXW
Supply Ability: 1000 sets/month
Operating Temperature: |
-20℃~60℃ |
Battery Type: |
Lithium-ion(LFP)/NMC/LTO |
Warranty: |
3 Yeras |
Communication Port With UPS: |
RS485/CAN |
Product Name: |
Battery Management System |
Communication Port With BMU: |
CAN |
Event Record: |
Available (5000) |
Communication Interface: |
CAN/RS485 |
OEM &ODM: |
Acceptable |
Operating Temperature: |
-20℃~60℃ |
Battery Type: |
Lithium-ion(LFP)/NMC/LTO |
Warranty: |
3 Yeras |
Communication Port With UPS: |
RS485/CAN |
Product Name: |
Battery Management System |
Communication Port With BMU: |
CAN |
Event Record: |
Available (5000) |
Communication Interface: |
CAN/RS485 |
OEM &ODM: |
Acceptable |
Product Description:

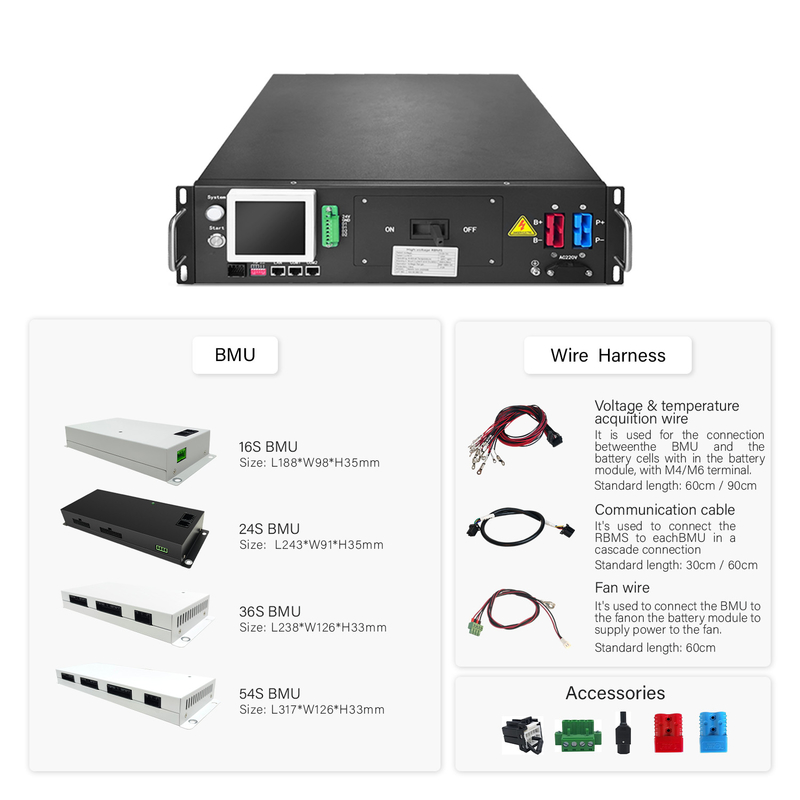

The RBMS-S23-125A-600 is a high voltage master BMS that comes with parallel function. Additionally, it features a 3.5-inch embedded screen and a two-wire system (without mid-line). This BMS is designed to support a maximum rated current of 125A and a rated voltage of 600V.
Voltage Levels:
Note that the RBMS comes in 2 voltage levels: 350 and 600. The former represents the operating voltage range from 120-350VDC, while the latter represents the operating voltage range from 260-600VDC.
Calculation Method:
To calculate the actual rated voltage of the system, we can take the nominal 3.2V lithium iron phosphate battery as an example. If the system consists of 4 pcs of 24S battery modules in series, the rated voltage will be 4*24*3.2=307.2V. Similarly, if the system consists of 6 pcs of 16S battery modules connected in series, the rated voltage will be 6*16*3.2=307.2V.
Our highly integrated battery management system offers seamless monitoring and ensures optimal performance for energy storage systems. With its advanced technology, you can be assured of reliable energy storage to meet your power needs.
Our battery management system comes with perfect self inspection and operation status detection capabilities. When combined with HMI display screen, system operation information is clear and easy to understand. You can quickly identify any operational issues and address them effectively.
Our battery management system comes with a perfect and reliable system control and protection strategy, which fully ensures the safety of the battery, and extends the service life of the battery pack. With this system, you can be confident your energy storage is always secure and operating at peak efficiency.
The battery management system features a modular design that is easy to configure and expand. You can connect and combine multiple energy storage units to create a larger energy storage system. This system can support up to 160 batteries in series, providing you with incredible flexibility for your energy storage needs.
Our battery management system includes multiple communication interfaces, such as RS485, CAN, Ethernet, dry contact input, and output interfaces. These interfaces enable easy communication with the most popular PCS and monitoring servers on the market.
This system comes with our factory communication protocol. However, we also provide PCS of different manufacturers with an adaptable communication interface protocol according to customer needs. With this flexibility, you can customize the system to your unique requirements.
The built-in high-capacity memory chip in our battery management system provides sufficient storage for essential operational data. You can store a significant amount of key operation data in this system. Additionally, you can add an SD card to store historical data of the cell for later analysis.
The battery management system includes automatic circulation control and automatic parallel/offline control features. These features enable easy parallel connection of battery packs. You can conveniently and efficiently manage your battery system with this useful technology.
As the world shifts focus towards clean and renewable energy sources, the need for efficient energy storage solutions increases. New innovative technologies are constantly emerging, allowing for alternative energy storage solutions to become more accessible and reliable than ever before.
One such solution is PV power plant storage. With the help of battery storage systems, excess solar energy can be stored for later use, reducing the reliance on traditional energy sources during low sunlight periods. This type of energy storage is becoming increasingly popular as solar power becomes more prevalent in many countries around the world.
Another alternative energy storage solution is island off-grid energy storage. This technology involves using a combination of renewable energy sources, such as wind or solar power, and energy storage devices to create a sustainable energy system without relying on a traditional power grid.
Optical storage charge integration applications also offer a unique solution for energy storage. By using light to charge special materials, energy can be stored and released quickly when needed. This technology has the potential to revolutionize the way energy is stored and used, making it a promising solution for the future of clean energy storage.
Micro-grid applications are another alternative energy storage solution that allows for local communities to generate and store their own energy. By utilizing renewable energy sources and an energy storage system, a micro-grid can operate independently from the main power grid, providing a reliable and sustainable energy source for localized areas.
UPS power supply, or an uninterruptible power supply, offers a reliable energy storage solution for emergency situations. This device provides a backup power source during outages or when the main power supply is unavailable, ensuring a constant supply of electricity.
Finally, a power system 220V DC power supply is an alternative energy storage solution that allows for the conversion of AC power to DC power. This type of system is especially useful for applications that require DC power, such as LED lighting or electric vehicle charging.
Product Packaging:
Shipping:
Q: What is the brand name of the battery management system?
A: The brand name is GCE.
Q: What is the model number of the battery management system?
A: The model number is RBMS-S23-125A-600.
Q: Where is the battery management system manufactured?
A: The battery management system is manufactured in China, Hunan.
Q: What certifications does the battery management system have?
A: The battery management system is certified with CE, RoHS, SGS, and MSDS.
Q: What is the minimum order quantity for the battery management system?
A: The minimum order quantity is 2 sets.
Q: What is the price of the battery management system?
A: The price is negotiable. Please email cara@hngce.com for more information.
Q: What are the packaging details for the battery management system?
A: The packaging details include corrugated carton, bundles, pallets, and wooden box.
Q: What is the delivery time for the battery management system?
A: The delivery time is 15-25 workdays.
Q: What are the payment terms for the battery management system?
A: The payment terms are FOB, CFR, and EXW.
Q: What is the supply ability of the battery management system?
A: The supply ability is 1000 sets per month.
