Product Details
Place of Origin: China
Brand Name: GCE
Certification: CE
Model Number: RBMS07S2-3-160A528V
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: Please contact: ellen@hngce.com
Packaging Details: Blister & Carton
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C
Supply Ability: 20000sets / Month
Product Name: |
Battery Management System( 3 Structures Relay BMS) |
Battery Type: |
LFP / LTO / NMC |
Charge And Discharge Current: |
160Amp / 125Amp |
Communication: |
CAN / RS485 |
Strings: |
165S |
Screen: |
3.5 Inch |
Application: |
Hibrid / Off Grid Solar Energy System, Ups, Bess |
Warranty: |
3 Years |
Product Name: |
Battery Management System( 3 Structures Relay BMS) |
Battery Type: |
LFP / LTO / NMC |
Charge And Discharge Current: |
160Amp / 125Amp |
Communication: |
CAN / RS485 |
Strings: |
165S |
Screen: |
3.5 Inch |
Application: |
Hibrid / Off Grid Solar Energy System, Ups, Bess |
Warranty: |
3 Years |
Smart BMS 528V 125A 160A Lifepo4 Li-Ion LTO Battery Management System With 15S 16S 24S BMU Relay Solution For ESS UPS
GCE Battery Management System High Voltage BMS 30S-270S 192V-864V Relay BMS
Battery management systems monitoring and controlling high-voltage batteries
Multi-module batteries consist of several single-battery modules which are connected in series or parallel.
Typically large-format Lithium-ion battery packs consist of modules that are assembled together. Multi-module batteries are typical for applications with high-voltage batteries including energy storage systems, UPS, Photovoltaic farm, e-boats and Solar energy storage system.
To ensure the optimal use of the energy, to manage the charging and discharging processes, and to assess each cell‘s State-of-Charge(SoC), State-of-Health (SoH), and other status parameters, the battery management system (BMS) monitor and controls all processes relevant to the battery’s overall performance and lifetime.
BMS configuration
165S 528V 160A High Voltage BMS * 1set
15S BMU *11sets
15S wire harness with M4 / M6 terminal * 11sets
(15S48V battery pack / module, 11 modules connected in series for 165S 528V 160A system)
SBMS(stack BMS) will be provided when multi-BMS connected in parallel.
Specifications
|
Product Name
|
Battery Management System (Relay BMS)
|
|
Model no.
|
RBMS07S2-3-160A528V
|
|
protecting method
|
MCCB+Contactor
|
|
Rated Current range
|
-125A~125A
|
|
Voltage Range
|
48V-600V
|
|
Current Sampling Accuracy
|
1.0%FSR
|
|
Communication interface with PCS
|
RS485/CAN
|
|
Communication interface with BMU
|
CAN
|
|
Communication interface with SBMS
|
RS485/CAN
|
|
Communication with monitoring software/EMS
|
Ethernet
|
|
Support IAP upgrade
|
Yes
|
|
Support HMI display and parameter
|
Yes(Optional)
|
|
Insulation detection
|
Yes(Optional)
|
|
High voltage power module
|
Support DC start (optional)
|
|
Dry contact output (normally open)
|
Up to 3
|
|
Power
|
24VDC(18~28V)
|
|
Power consumption
|
≤20W
|
|
Size(W*H*D)mm
|
3U (440*133*500)
|
|
Tap center
|
Not support
|
|
Net weight
|
17kg
|
Detail Picture
15S Slave BMU + 15S Temperature & Voltage acquisition wire harness + Accessories

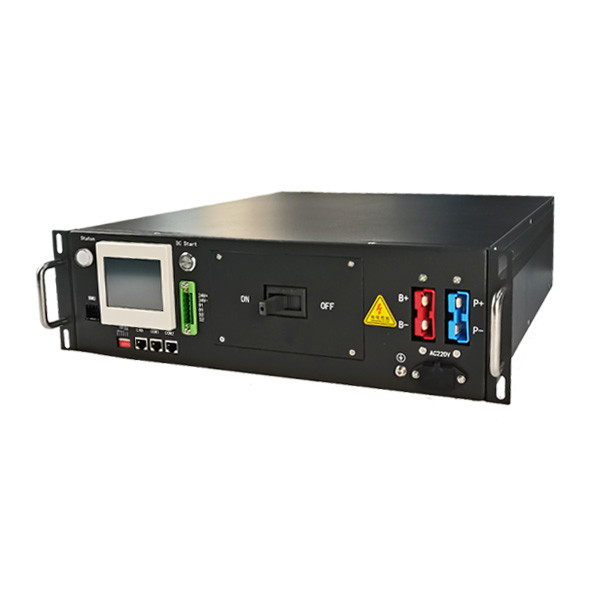

3U master BMS, voltage from 192V-600V, current 125A / 160A
